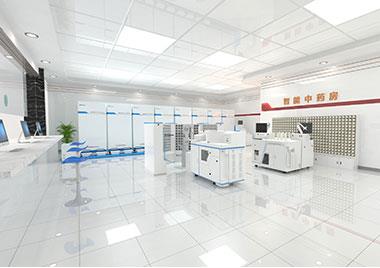

TCM Herbal Pieces Dispensing&Decoction Automation

HollyCon developed the first set of automatic TCM herbal slice dispensing equipment in China, which completely overturned the traditional method of prescribing and dispensing through manual operation such as hand-grabbing, realizing dispensing by medicine types, multiple prescriptions in parallel dispensing, It has set a precedent of herbal pieces dispensing automation. The self-developed intelligent decoction machine inherits the ancient method of bulk decoction,realizing automatic double-decoction and automatic concentration, accurately controlling the amount of liquid,and ensuring the quality of decoction.


MD6609 Intelligent Decoction Equipment
Intelligence technology ensure decoction keep traditional
Inheritance of ancient decoction for automatic secondary decoction
Innovative steam heating, energy saving and consumption reduction
Innovative automatic metering , water addition, twice decoction, high decotion rate is convenient for building a modern automatic decotion center without human intervenes
Product Features
  • Traditional Decocting Method
    Use bulk normal pressure decoction. Ensure the quality of decoction
  • Precise Medicine Yield
    Adopt advanced control technology, automatically calculate the water amount to ensure precise medicine yield
  • Automatic Twice Decoction
    The liquid medicine is automatically mixed and decocted twice to ensure the quality of the liquid
  • Effective Frying
    Automatic extrusion to improve dissolution rate
  • Effective Concentration
    Automatically concentrate, improve the quality of liquid
  • Avoid Cross Contamination
    High-temperature cleaning of the decoction machine and the medicine output channel to ensure no liquid is left behind
  • Mild and Strong Fire Control
    Automatic conversion between mild and strong fire with controllable temperature
  • Automatic Condensation
    High efficient condensation, prevent the decoction steam from escaping, and improve the decoction environment

  • Effective Energy Saving
    High efficient steam heating, saves 2/3 energy consumption compared with traditional decoction machine
  • Interconnection
    Support network communication function, network communication of key data such as water addition, liquid output, and temperature curve of decoction
  • Safe and Reliable
    The pressure and temperature in the pot are monitored in multiple ways to prevent dry burning and effectively ensure safe operation
Product Specification
  • Equipment Capacity：25L
  • Storage Tank Capacity：7L
  • Steam Consumption：<2（kg/ dose @0.4Mpa）
  • Communication Interface：RJ45 Ethernet
  • Operation System：Support WinCE
  • Equipment Size：550×1230×730mm
  • Supply Voltage：220VAC
  • Rated Power：350W
