TCM Herbal Pieces Dispensing&Decoction Automation

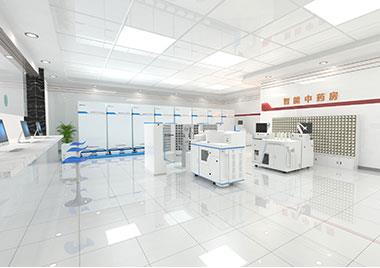

HollyCon developed the first set of automatic TCM herbal slice dispensing equipment in China, which completely overturned the traditional method of prescribing and dispensing through manual operation such as hand-grabbing, realizing dispensing by medicine types, multiple prescriptions in parallel dispensing, It has set a precedent of herbal pieces dispensing automation. The self-developed intelligent decoction machine inherits the ancient method of bulk decoction,realizing automatic double-decoction and automatic concentration, accurately controlling the amount of liquid,and ensuring the quality of decoction.

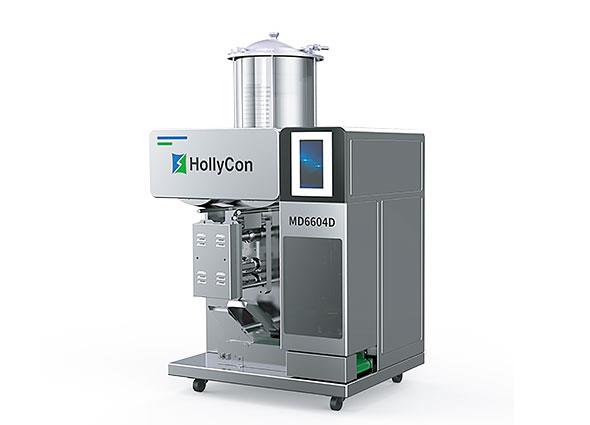

MD6604 TCM Decoction Packaging Labeling Integrated Equipment
Network Interconnection: Acquire bag capability and labeling information automatically by Ethernet
Automatic Labeling: Automatic label printing and labeling
Heat Sterilizing：Automatic heating sterilization before packaging according to pre-set packaging temperature
Lacking-film Detection: Packaging roll film lacking detection to prompt roll replacing
One-button Cleaning: Automatic cleaning and draining after medicine decoction packaging finished.
Decoction level Measurement: Automatic measurement of decoction level
Product Features
  • Network Interconnection
    Acquire prescription automatically by Ethernet
  • Automatic Packaging
    Decoction packaging quantity and packaging bag quantity is set automatically according to prescription information
  • Automatic Labeling
    Automatic label printing and labeling
  • Automatic Temperature Control and Heat Sterilizing
    Automatic heating sterilization before packaging according to pre-set packaging temperature
  • Prevent Overflow by Heating Medicine Decoction
    The heating process has the function of anti-overflow
  • Temperature Control on Packaging Roller
    According to different packaging materials, automatically control the temperature setting
  • Lacking-film Detection
    Packaging roll film lacking detection to prompt roll replacing
  • Decoction level Measurement
    Automatic uploading the information after the measurement of decoction level
  • Automatic Cleaning and Draining
    Automatic cleaning and draining after medicine decoction packaging finished
Product Specification
  • Packaging Range：50mL~250mL
  • Packaging Rate：≥7 bags/min
  • Packaging Precision：Volumes≥100mL，Precision≤5% ; Volumes<100mL，Precision≤5mL
  • Label Capability： 3000 pieces
  • Power：2100W（Imax：9.4A）
  • Voltages：220V/50Hz
  • Equipment Size：600mm*830mm*1250mm
  • Distance between water inlet and floor：370mm
  • Distance between air inlet and floor：210mm
  • Installation Spacing Requirement：Side: 500mm~800mm;Front: 800mm;Back: 300mm
  • Rated Voltages：220VAC
  • Peak Current：9.4A
  • Water Pressure:≥ 0.2Mpa
  • Air Pressure：0.6±0.1Mpa φ8 Pipe Port
