Packaging Automation
The MD62 series of automatic packaging equipment independently developed by HollyCon is simple to operate, easy to maintain, and durable. Through successful application in many pharmaceutical companies, it satisfies customers' demanding, and customizable requirements for cost-saving, high-efficiency, and high-quality packaging. HollyCon has performed more prominently in improving equipment production capacity and product quality, reducing maintenance and energy consumption costs etc.

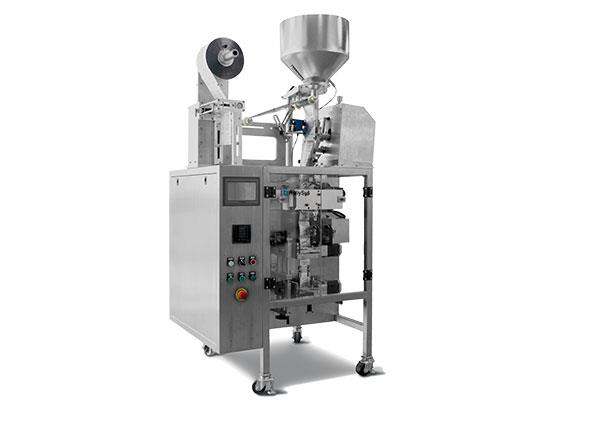

MD6211 Single Row Automatic Granule Packaging Equipment
Best Choice for Pharmaceutical Industry
Application:
Suitable for small-dose automatic packaging for loose, non-sticky, and small granular material in the pharmaceutical, food, tea, chemical and other industries.
Application:
Suitable for small-dose automatic packaging for loose, non-sticky, and small granular material in the pharmaceutical, food, tea, chemical and other industries.
Product Features
-
Imported Siemens PLC, pre-embedded program, LCD touch panel, easily operated and user-friendly. -
Traction system driven by servo motor for bag-making ensures stable hauling speed with balanced tension, strong adaptability to various packing films. -
Real time on-line monitoring of material shortage, film shortage and heating block status; and real-time display of alarms and causes on the LCD screen. -
Horizontal swing arm dosing system avoids damage and splash of the materials during the dosing process. -
Sachet length can be set on the LCD screen, speed for horizontal sealing is automatically tracked and adjusted simultaneously, no manual intervention is required. -
Clutch of dosing system is equipped with self-locking device to avoid clutch fall off during operating. -
Sealing lines are made by special technique to ensure clear sealing pattern lines with good air tightness. -
Measured filling is controlled by servo motor to ensure precise filling. -
Data transmission function, realizing remote monitoring and data analysis management. -
Meets GMP requirements and adopts U304 stainless steel. -
Compact structure, small space occupation, saving GMP space.
Product Specification
- Sachet Size：Length:50-110mm Width:30-60mm
- Dosing System：Volumetric Cup Filler
- Loading Range：0.5g-10.0g
- Packaging Precision：±2%~±7%
- Sealing Mode：3-side-seal/4-side-seal/back-seal
- Sealing Temperature：150℃-200℃
- Temperature：15℃-40℃
- Humidity：20%RH-80%RH（Without condensation）
- Working Speed：60-110 Sachet/min
- Power：AC220V±10%,50HZ
- Equipment Size：940mmx800mmx2000mm
- Cutting Mode：Rotary Cutter/Easy Tear Cutter (double cutter to realize dotted line cutting)
- Optional Configuration：Vacuum feeding/empty bag testing/coding machine/round corner/dust cleaner /conveyor etc.
